How Jaye-Heater's Custom Finned Heaters Boost Efficiency for a Major Injection Molding Machine Manufacturer

Introduction: The Heating Challenge in Plastic Injection Molding

In the competitive world of plastic injection molding, precision and efficiency are paramount. Every second of cycle time and every percentage point of energy savings directly impact profitability. A leading injection molding machine manufacturer faced a critical challenge with the heating systems in their newest line of high-tonnage machines.



Their existing barrel heating zones were inconsistent, leading to:

1. Uneven Melt Temperature: Fluctuations in the plastic melt caused variations in part quality.
2. High Energy Consumption: Standard heaters were inefficient, wasting significant energy.
3. Longer Cycle Times: Inconsistent heating delayed the process, reducing overall output.
4. Premature Burnout: Heaters in high-temperature zones frequently failed, causing unplanned downtime.

They needed a reliable, high-performance heating solution that could be seamlessly integrated into their OEM design. They partnered with Jaye-Heater for a custom solution.

The Client's Specific Requirements

The project required a heater that could meet stringent OEM specifications:

1. Uniform Heat Distribution: Essential for creating a consistent plastic melt and high-quality end products.
2. Rapid Heat-Up Times: To minimize cycle start-up delays and boost productivity.
3. High Temperature & Durability: Withstand continuous operation at high temperatures (up to 450°C / 842°F) in an industrial environment.
4. Compact Design: Fit into the confined spaces between the barrel zones without modification to the machine's frame.
5. Energy Efficiency: Reduce the overall energy load of the machine, a key selling point for the OEM's customers.

The Jaye-Heater Solution: A Collaborative, Custom-Engineered Finned Tubular Heater

Our engineering team worked closely with the client's R&D department to analyze the application. The solution was not an off-the-shelf product but a meticulously designed custom finned tubular heater.

Here's how we addressed each challenge:

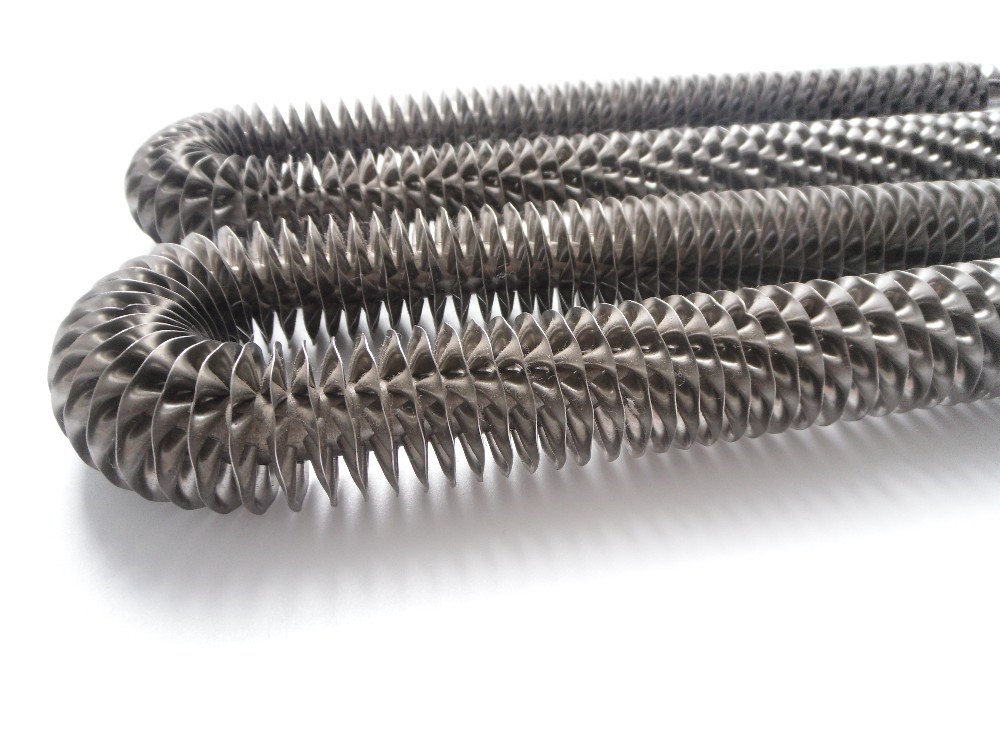

1. For Uniform Heat Distribution & Rapid Heat-Up: We designed a high-density fin arrangement using aluminum fins. This maximized the surface area in contact with the barrel, ensuring heat was transferred quickly and evenly across the entire zone, eliminating cold spots.
2. For High Temperature & Durability: We selected Incoloy 800 as the sheath material. This premium nickel-iron-chromium alloy offers exceptional resistance to oxidation and high-temperature corrosion, crucial for the demanding environment around an injection molding barrel. This choice significantly extended the heater's service life compared to standard stainless steel.
3. For Compact Design & OEM Integration: We created a custom "U" and "W" shaped bending profile to wrap precisely around the barrel, maximizing the heated surface area within the very limited space available. The terminal boxes were also custom-positioned for easy wiring access during machine assembly.
4. For Energy Efficiency: The combination of the large finned surface area and the high thermal conductivity of the aluminum fins created a high-efficiency heat exchanger. This allowed the heater to operate at a lower sheath temperature while delivering the same amount of heat to the barrel, directly reducing energy consumption.



Results and Benefits Delivered

After rigorous testing and full-scale production integration, the custom Jaye-Heater finned tubular heaters delivered measurable results:

1. 15% Reduction in Energy Use: The improved thermal efficiency led to significant energy savings per machine, a major competitive advantage for the OEM.
2. 30% Faster Heat-Up Time: Machines reached optimal operating temperature much faster, increasing production throughput.
3. Exceptional Temperature Uniformity: Part quality consistency improved dramatically, reducing scrap rates and customer complaints.
4. 50% Longer Heater Lifespan: The robust Incoloy construction drastically reduced premature failures, minimizing costly unplanned downtime for the end-users.
5. Seamless OEM Integration: The custom design fit perfectly, simplifying the client's assembly process.



Conclusion: More Than a Supplier, a Strategic OEM Partner

This success story exemplifies the Jaye-Heater difference. We don't just sell heaters; we provide engineered solutions. By acting as an extension of our client's engineering team, we developed a custom finned tubular heater that solved critical operational challenges, enhanced the performance of their final product, and strengthened their position in the market.
